Part-1: Integrating Content Management Platform with Sitecore Connect Hub: A Step-by-Step Walkthrough

Integrating Content Management Platform with Sitecore Connect Hub: A Step-by-Step Walkthrough

Sitecore Content Hub's Content Marketing Platform (CMP) offers a unified solution for efficiently managing all content-related activities, including planning, creation, management, and distribution. In the previous blog, I discussed how to integrate DAM, and in this blog, we will explore the integration of CMP.

Prerequisites

  • Install Sitecore 10.4 from here
  • Download    Sitecore Connect™ for Content Hub SIF Package and Sitecore Connect™ for Content Hub WDP Package from here.
  • Unzip the SCCH Sitecore Installation Framework package into the designated folder.
  • Execute the following command in PowerShell.
  • In ScchWdpPackage give a path of Sitecore.Connector.ContentHub.WDP.5.2.96-r00458.5768.scwdp.zip which you have downloaded previously.
  • To enable CMP on your Content Management server, open the web.config file and modify the configuration as shown below:
    • <add key="cmpEnabled:define" value="yes"/>
  • In Content Hub, go to manage and  then click on OAuth clients.
  • Enter all details and click on the Save button.

Configure CORS for DAM

  • Login into the Content hub, go to Manage and then click on Settings.

  • Search CORSConfiguration.
  • Enter your Sitecore instance URL, click on "Add," and then proceed to click on the "Save" button.

Create a User in Sitecore Content Hub

  • Go to Navigate to Content Hub, then go to Manage, and click on Users.


  • Click Add User and enter Username.

  • Within the M.Builtin.SitecoreDAM.Everyone user group, create a new rule for the M.Asset entity, and choose both Read and ReadPublicLinks permissions.
  • To assign the user to the group, navigate to the User groups tab, check the box next to the group name, and then click Select.
  • To access the sync blog entity, you need to have read permissions for M.Content.
  • Accessing the sync product entity requires read permissions for M.PCM.Product.
  • Then click Save.

Add Connection String

  • Add below connection strings in ConnectionStrings.config.
  • Ensure that the URL of the Content Hub instance (e.g., content-hub-url.stylelabs.com), other delivery hostnames (e.g., content-hub-url-delivery.stylelabs.cloud), and generated public links (e.g., content-hub-url.stylelabs.com:8686) are included as sources in the Content-Security-Policy tag. Open the web.config and update the below lines:

Configure Azure Service Bus

  • Create a service bus in Azure, you can check the reference here.

Create Content in Content Hub

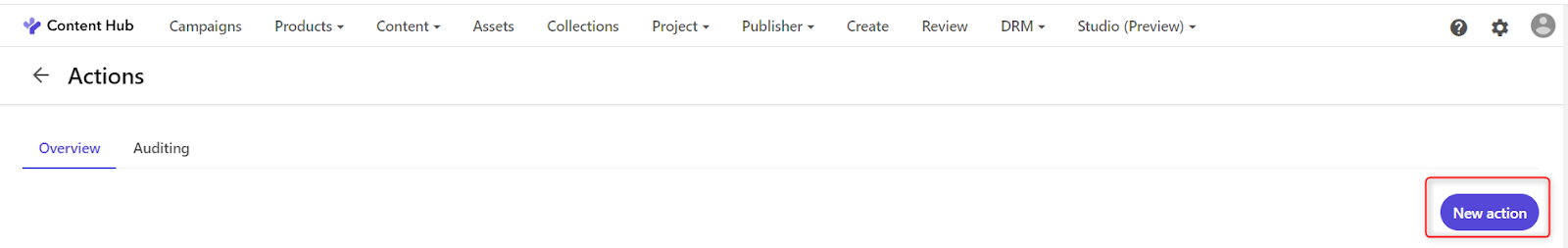

  • Log in to the Content Hub, click on the manage icon, and then select Actions
  • Next, click on the New Action button to create a new action.
  • Enter Name, Label, and Destination type also select M Azure Service Bus.

  • Select Triggers from the manage section.





  • Create a new trigger by clicking on the New Trigger button.


  • In the General tab, enter the name of the trigger. For the objective, you can choose from Entity creation, Entity modification, or Entity deletion.


  • In the Conditions tab, select the content type you want to sync along with any other conditions.
  • In the Actions tab, select the action you created earlier.







  • Open Sitecore Content Hub, click on the Manage icon and then select Content Types.

  • Click on the Add type button.


  • Enter a "Label" for the content types, and the Identifier and Prefix will be automatically filled. You can also change the Icon and Color if desired. Then click on the Save button.

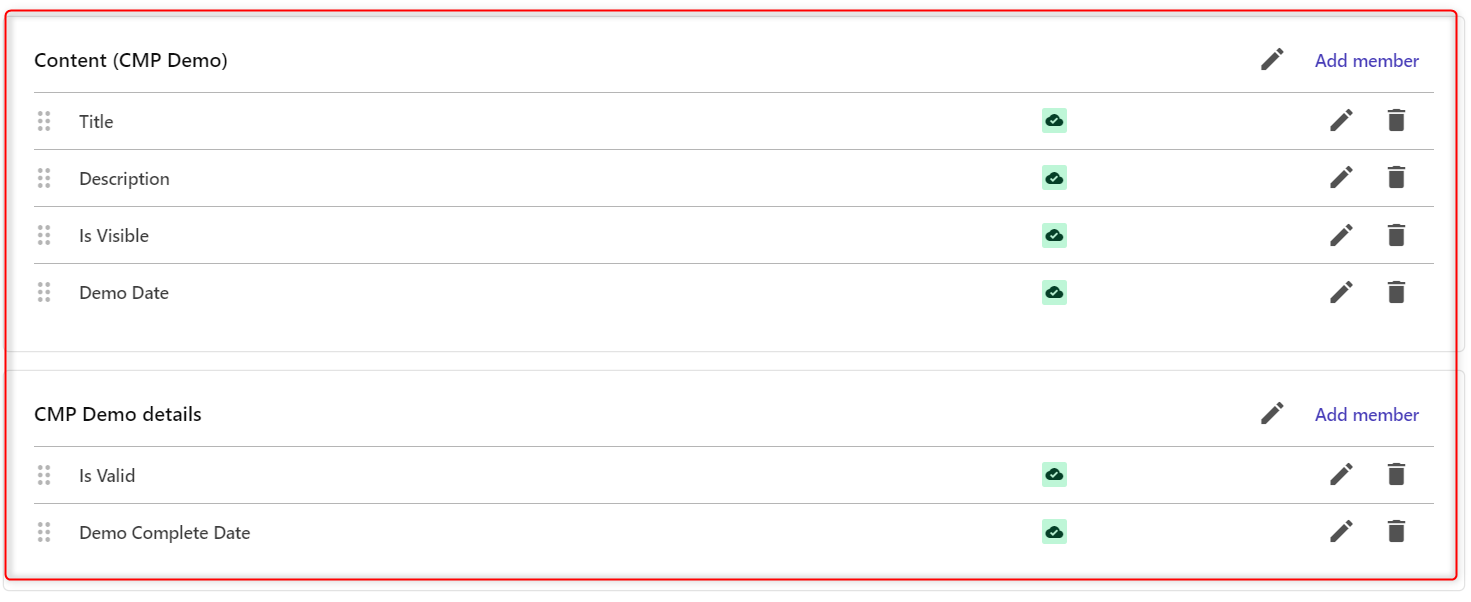

  • It will create two sections "Content (CMP Demo)" and "CMP Demo details".



  • In the Individual section, you can add members. To do so, click "Add Member," which will open a popup where you must select the field type, such as Boolean, Datetime, Decimal, Integer, etc.

  • Enter Name, Label, and Help Text. Then click on the Save button.

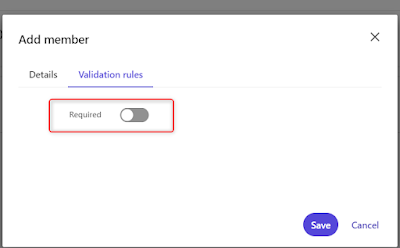

  • In Validation rules, you can enable Required if it is a required field.


  • The field will be displayed in a section.


  • Go to Content and then click on Search. Then click on the "+ Content" button and create a new page.
  • Enter the Name of the page and in Type select the "CMP Demo" page.


  • Enter detail in all fields and click on Save.





In Part 2, we will explore how to sync CMP demo pages in XM.
